Guolis Enduro Bearings F6900 LLU ABEC 3 Radial

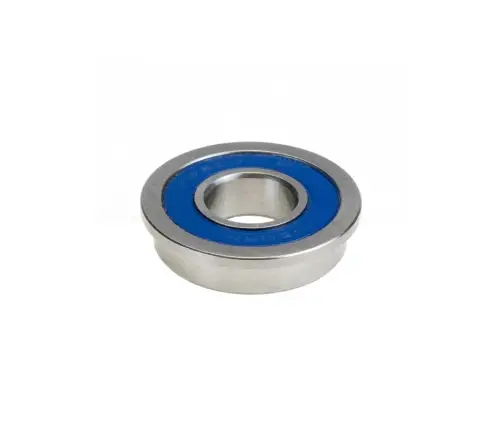

F6900 LLB - ABEC-3, Flanged, Radial Bearing (C3 Clearance) - 10mm x 22/24mm x 6mm

This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and light-contact, double-lip, labyrinth (LLB) seals for maximum protection against the elements, while keeping the 90% fill of Mobil XHP 222 Extra High Pressure grease inside. The flanged design ensures precise insertion into through-holes in swing-arms and suspension linkages while the extended inner race eliminates the need for extra spacers to connect suspension linkages.

This bearing has been commonly used as a suspension pivot bearing.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 286lbf / 1.27kN
Weight - 9.4g
