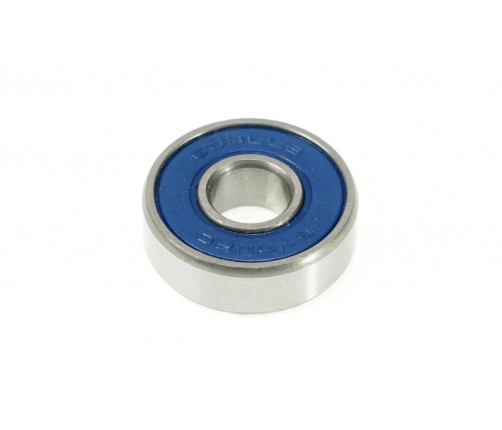

Bearing Enduro Bearings 608 LLB ABEC 3

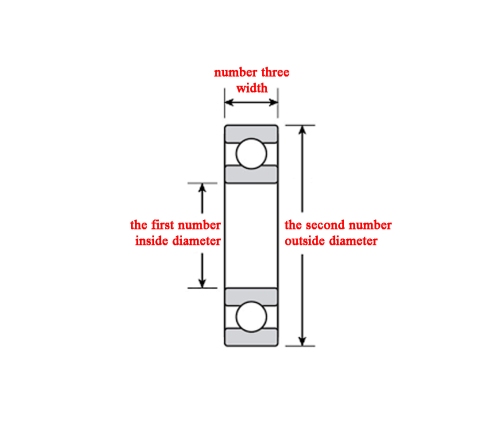

608 LLB - ABEC-3 radial Bearing (C3 clearance) - 8mm x 22mm x 7mm -

This radial bearing has been used in chain tensioners and as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use. There are also quite a few suspension designs that utilize custom versions of this size, but with extended or flanged races, please verify before you buy. This ABEC-3 radial bearing features 52100 High-Carbon Chromium alloy races paired with Grade 10 balls and dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobil XHP 222 high pressure water proof synthetic grease.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 308lbf / 1.37kN
Weight - 11.2g
