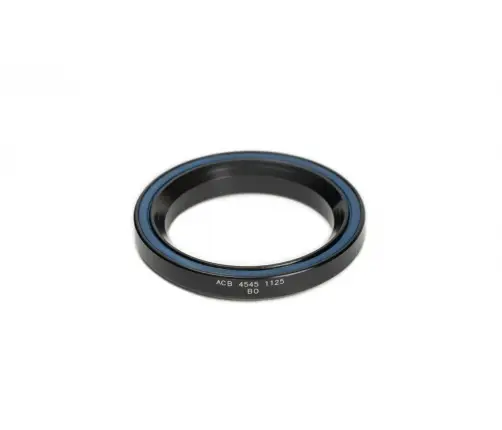

Bearing Enduro Bearings ACB 4545 1125 Black Oxide 1-1/8"

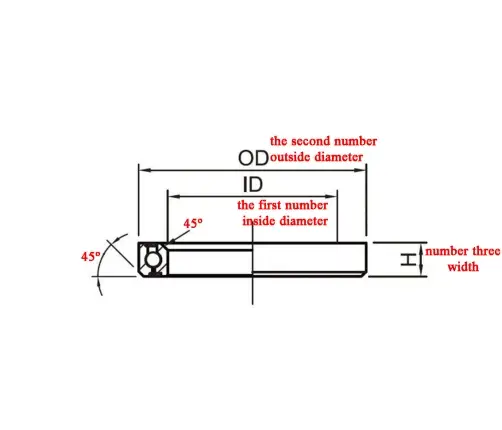

ACB 4545 1125 BO - 1-1/8 Black Oxide Angular Contact Headset bearing (30.5mm x 41.8mm x 6.5mm: 45x45 deg)

Angular-contact headset bearing featuring anti-corrosion Black oxide/Magnetite coated 52100 High-Carbon Chromium alloy races paired with grade 10 Balls. Black Oxide coating provides an extra level of corrosion resistance and extended worry-free performance

This size bearing is also known in the bike Industry by these part numbers:
MR042
870E
MR121
MR070
MR084
MR116
TH-870E
MH-P08

The Enduro line of angular-contact headset bearings start with Black Oxide treated Chromium Steel races and then steps up to full 440C stainless steel. The Black Oxide headset bearings are treated in multiple chemical baths to achieve a 3 micron anti corrosive depth. This process also provides a secondary advantage of heat treatment making them tougher. The BO races then go through a secondary "super grind” polishing the rolling surface mirror smooth. Both Stainless and BO bearings are engineered with the largest balls possible, feature dual-lip seals riding in a micro-groove (labyrinth) and are filled 90% with extra high pressure Almagard 3752 grease for the ultimate protection against sweat and the elements. Enduro Angular Contact (A/C) bearings are designed so all balls are evenly engaged to spread the force over a larger surface area, minimizing wear and maximizing life.

Static load - 980lbf / 4.35kN
Weight - 19.24g
